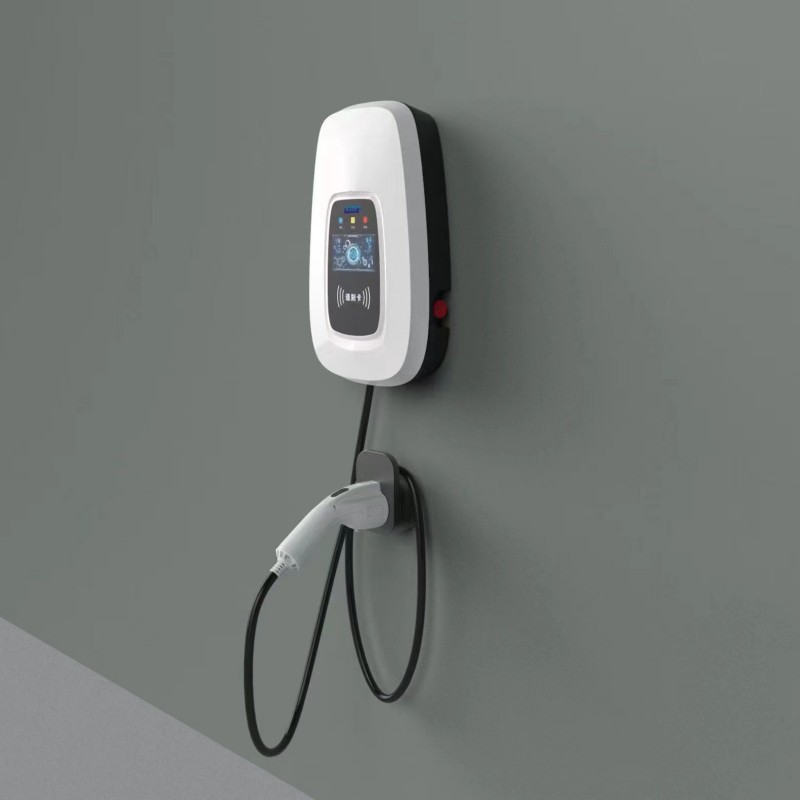

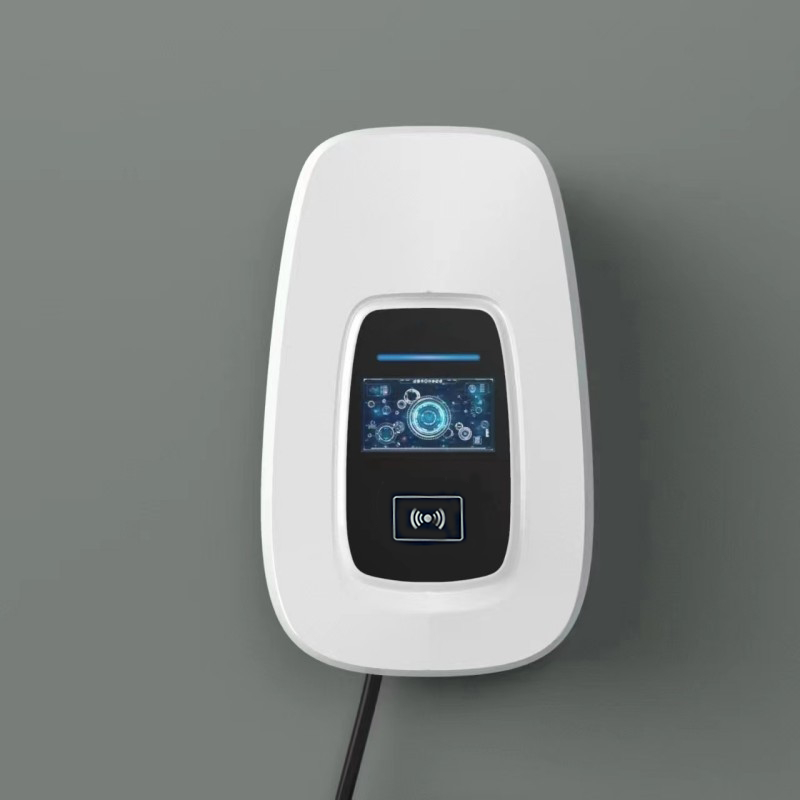

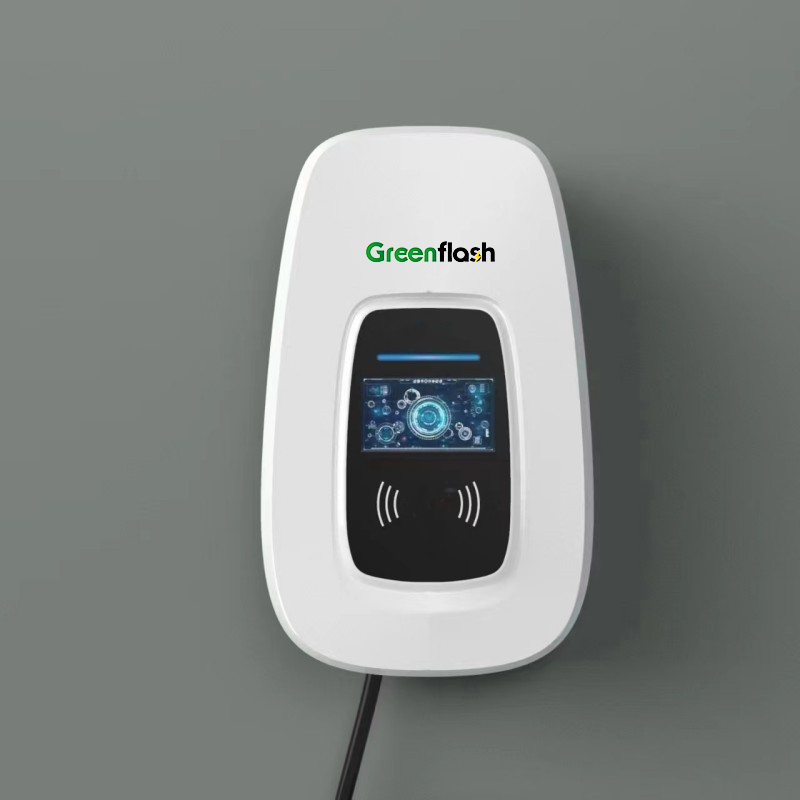

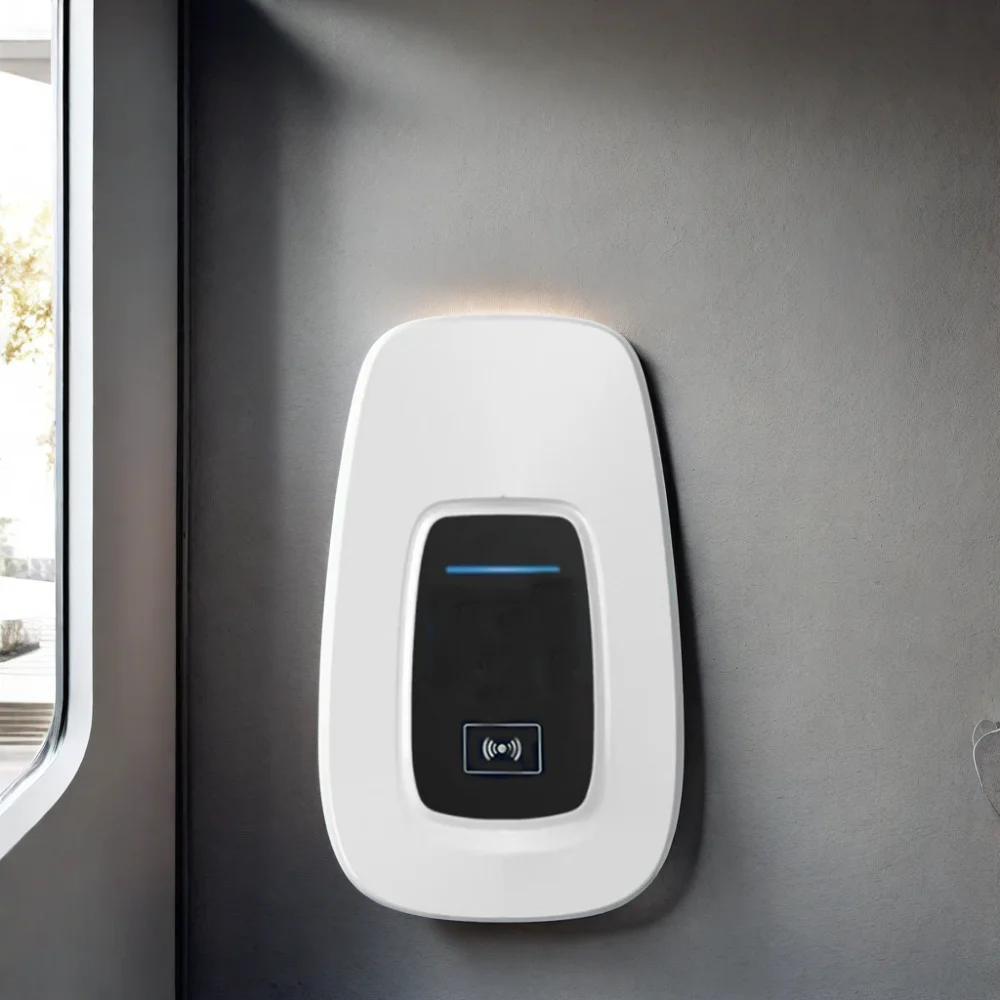

Type1 Type2 GB/T 7-22KW EV Charging Station Wallbox 1/3 Phase Level3 32A OCPP APP 4G AC Electric Car Charger EV Charger
Advantages
Fast Charging:DLB charging stations support fast charging,significantly reducing charging time and enhancing the convenience of electric vehicles.
Intelligent Management:DLB charging stations are equipped with intelligent management systems that monitor and control parameters such as current,voltage,and temperature during the charging process,ensuring safe and efficient charging.
Interconnectivity:DLB charging stations often support interconnectivity with other charging stations and vehicle management systems,enabling seamless communication and remote management of the charging station.
Charging Reservation:DLB charging stations may support users to make advance reserations for charging, allowing them to secure charging slots at specific times.enhancing convenience and flexibility.
Product Application Case
Across the globe, BENY has forged robust business relationships with clients in the realm of EV charging station construction,offering comprehensive, cost-effective, instant charging solutions for their vehicles.
Our expertise and services in EV charging projects empower numerous individuals worldwide to start global EV charging station development.
These worldwide projects of EV chargers showcase how our innovative global EV charging station solutions have been applied to diverse environments, contributing to EV charging station construction.
Application
* 1-Phase from 1.3kW to 7.4kW
* 3-Phase from 4.1kW to 22kW
* Full Protection
* Dynamic Load Balancing (optional)
* Open Charge Point Protocol (optional)
* Customize All Types of Connectors
* Smart Version with APP (optional)
* 3 Years Warranty
* Built-in Type B RCD for Leakage Protection
* Over Temperature Sensor
* Clip-on Grid Current Sensor
* LED Ring Status Indication
* With Emergency Stop Switch
Application
Therefore, Tongxing EV charger has been catering to the different customers'needs and updating our products in terms of functions, materials etc.
Application
Contact us for a free consultation

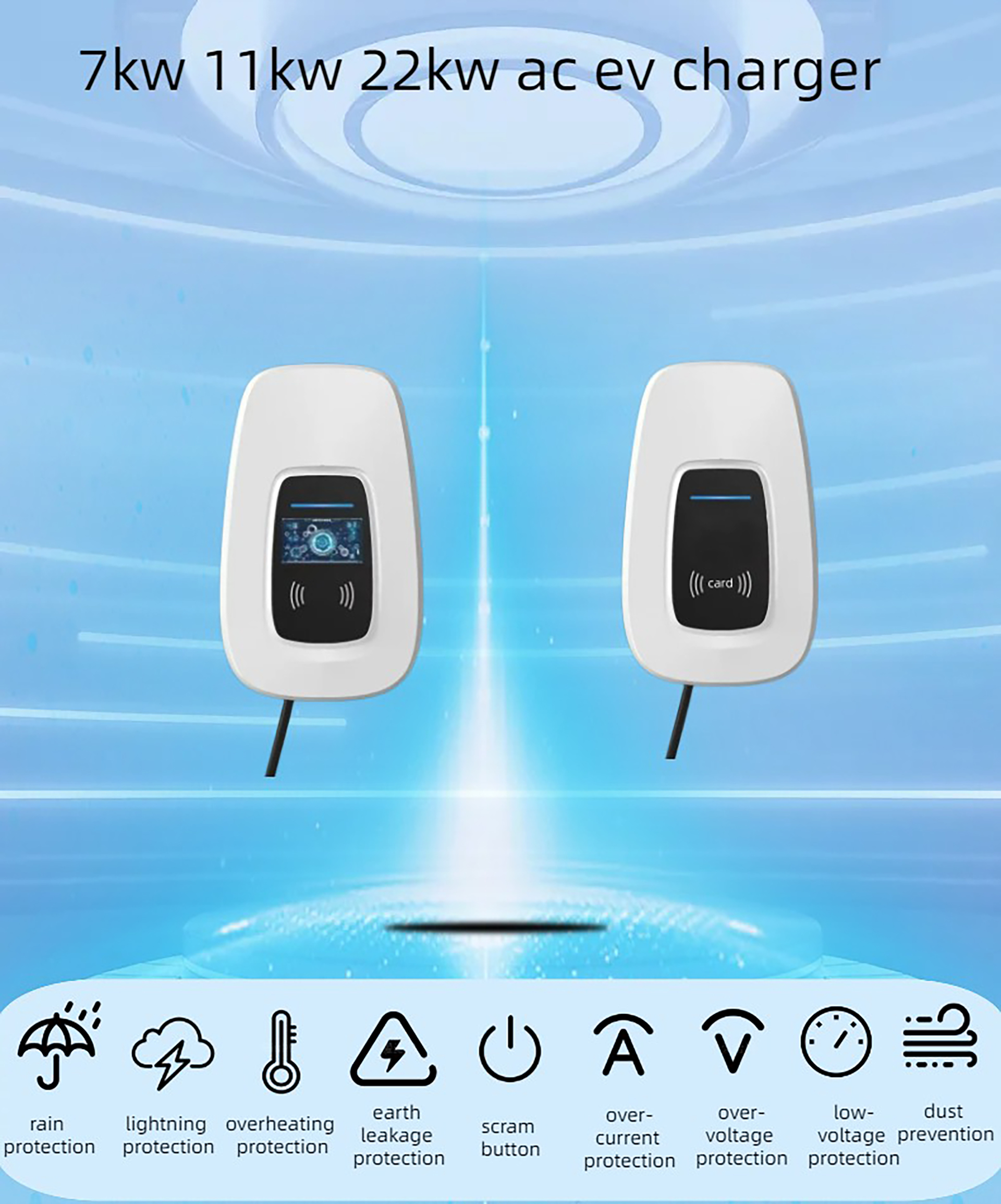

| Rated power | AC 7KW | AC 11KW | AC 22KW |
| Product model | 7kw single machine with plastic shell | 11kw single machine with plastic shell | 22kw single machine with plastic shell |
| Installation method | Wall mounted | ||
| Overall dimensions | 230 * 85 * 370 (mm) wide, thick, and high | ||
| Weight | About 4 KG | ||
| Output mode | Single circuit, European standard cable, 5M cable | Single circuit, European standard cable, 5M cable | Single circuit, European standard cable, 5M cable |
| Interface | LED lamp, 4.3 inch LCD touch screen (optional) | ||
| Wiring mode | Down in and down out | ||
| Input voltage | AC220V±20% | AC380V±20% | AC380V±20% |
| Input frequency | 45-65Hz | ||
| Output voltage | AC220V±20% | AC380V±20% | AC380V±20% |
| Single gun output current | Single item 32A | Three items 16A | Three items 32A |
| Metering accuracy | Level 0.5 | ||
| Current limiting protection | ≥110% | ||
| Standby power | ≤3W | ||
| Charging mode | Plug and play, automatic full, regular charging | ||
| Payment method | Swipe card charging, scan code charging | ||
| Communication method | Ethernet, 4G, WIFI, Bluetooth, App, (optional) | ||
| Executive standards | IEC62196 | ||
| Safety function | Overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, lightning protection, emergency stop protection, leakage protection, adhesion detection | ||
| DLB | Dynamic Load Balancing | ||
| Working temperature | ﹣25℃—﹢50℃ | ||
| Working humidity | 5% - 95% frost free | ||
| Working altitude | ＜2000meters | ||
| Protection level | IP54 | ||
| Cooling method | Forced air cooling | ||
| Noise control | ≤40dB | ||
