Type 2 AC EV Charger 7Kw 11Kw 22Kw Wallbox Electric Vehicle Fast Charging Pile Wall-mounted Electric Car AC EV Charging Station
Flexible multi-power adaptation, upgraded charging efficiency
7kW basic model: Suitable for daily charging at home, it can fully charge a 40kWh battery in 6 to 8 hours, meeting the daily commuting need of 50km.
11kW Advanced model: Supports 3-phase power input, fully charges the same capacity battery in 4-5 hours, suitable for two-car families or small and medium-sized commercial scenarios (such as coffee shops, convenience stores).
22kW Flagship model: Industry-leading single-phase/three-phase adaptive technology, fast charging within 2-3 hours, suitable for the high-power charging requirements of high-end electric vehicles such as Porsche Taycan and Mercedes-Benz EQS.
Intelligent power regulation: The built-in MCU chip automatically matches the grid load to prevent overload tripping. It supports parallel networking of multiple charging piles (customized software required).
Compatible with Type 2 standard, plug and play

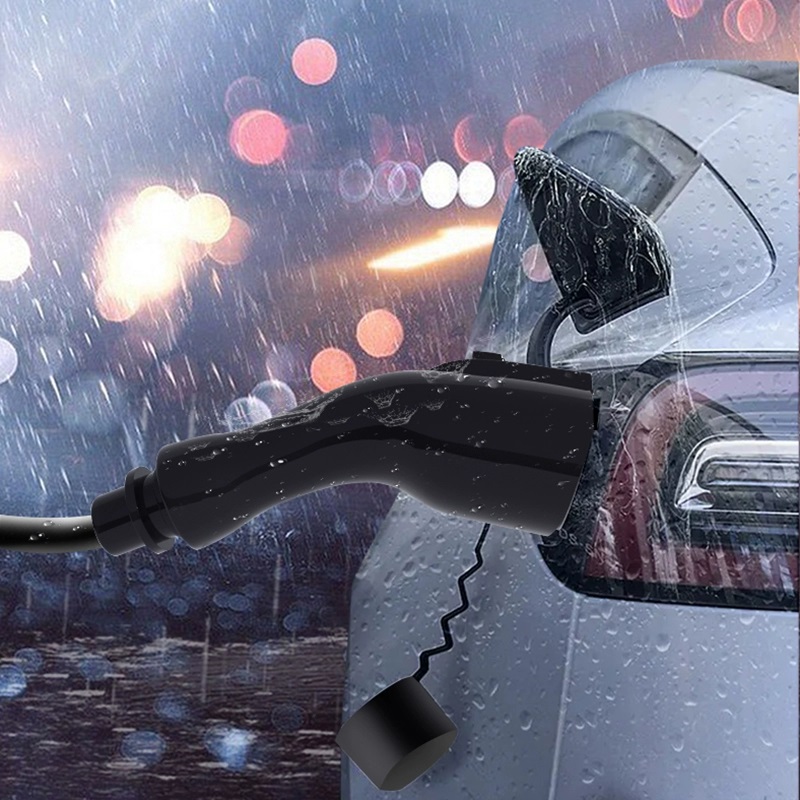

International common interface: Complies with the IEC 62196-2 standard, supports Type 2 interface electric vehicles in regions such as the European Union, the United Kingdom, and Australia, and is compatible with CCS2/AC hybrid plugs.
Wide voltage input: Supports 200-240V (single-phase) /380-415V (three-phase), adapting to the power grid environments of different countries.
Application
| Rated power | AC 7KW | AC 11KW | AC 22KW |
| Product model | 7kw single machine with plastic shell | 11kw single machine with plastic shell | 22kw single machine with plastic shell |

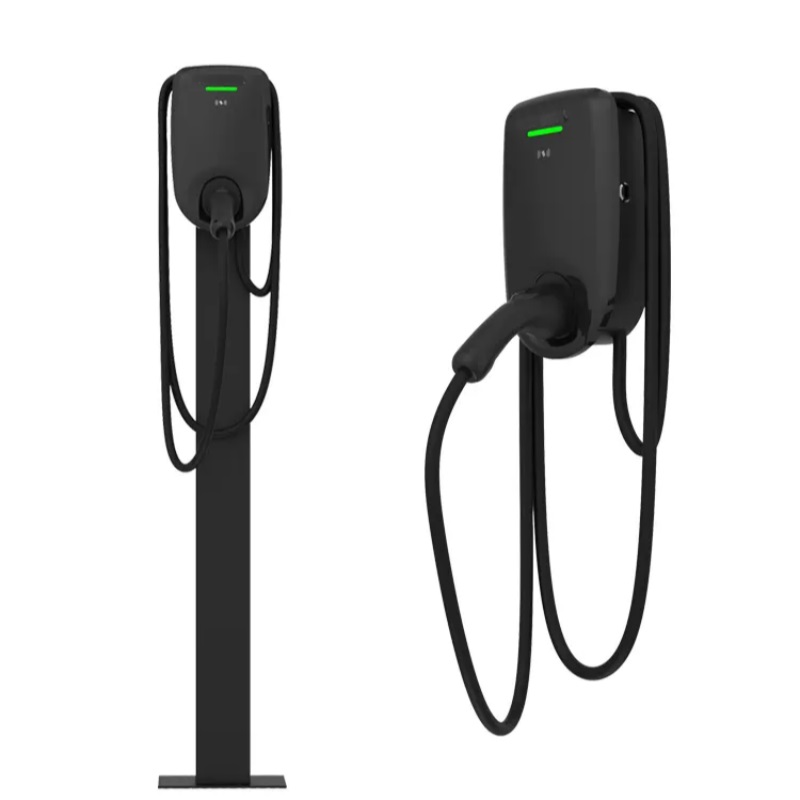

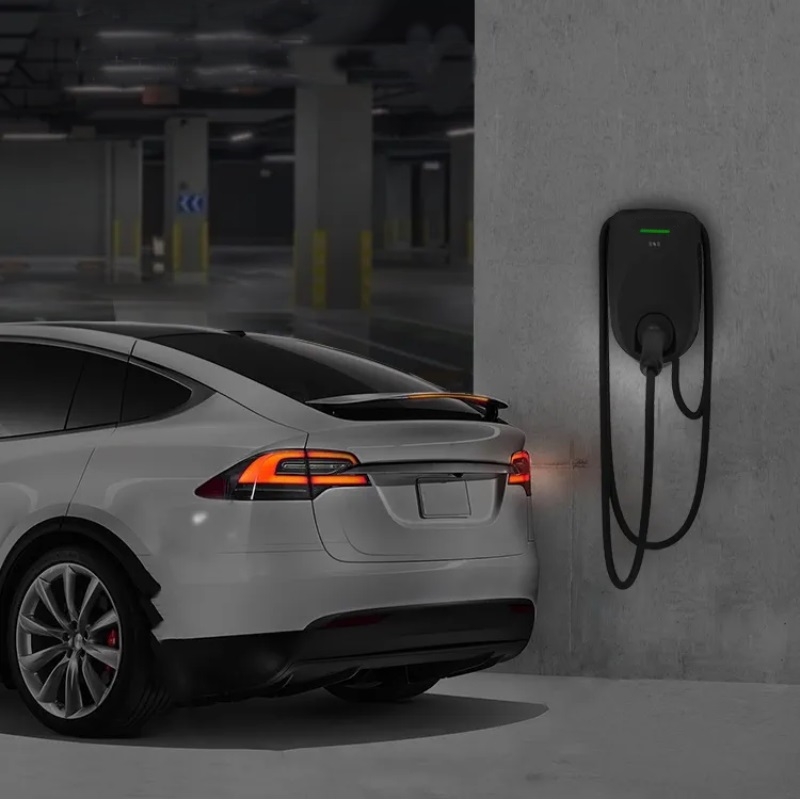

| Installation method | Wall mounted | ||
| Overall dimensions | 230 * 85 * 370 (mm) wide, thick, and high | ||
| Weight | About 4 KG | ||
| Output mode | Single circuit, European standard cable, 5M cable | Single circuit, European standard cable, 5M cable | Single circuit, European standard cable, 5M cable |

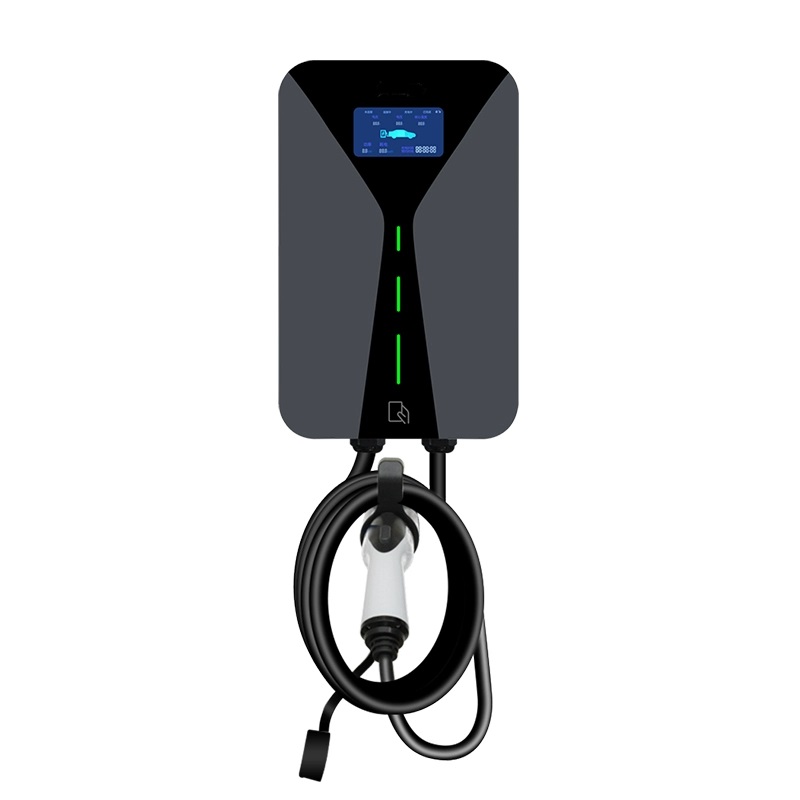

| Interface | LED lamp, 4.3 inch LCD touch screen (optional) | ||
| Wiring mode | Down in and down out | ||
| Input voltage | AC220V±20% | AC380V±20% | AC380V±20% |
| Input frequency | 45-65Hz | ||
| Output voltage | AC220V±20% | AC380V±20% | AC380V±20% |
| Single gun output current | Single item 32A | Three items 16A | Three items 32A |
| Metering accuracy | Level 0.5 | ||
| Current limiting protection | ≥110% | ||
| Standby power | ≤3W | ||
| Charging mode | Plug and play, automatic full, regular charging | ||
| Payment method | Swipe card charging, scan code charging | ||
| Communication method | Ethernet, 4G, WIFI, Bluetooth, App, (optional) | ||
| Executive standards | IEC62196 | ||
| Safety function | Overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, lightning protection, emergency stop protection, leakage protection, adhesion detection | ||
| DLB | Dynamic Load Balancing | ||
| Working temperature | ﹣25℃—﹢50℃ | ||
| Working humidity | 5% - 95% frost free | ||
| Working altitude | ＜2000meters | ||
| Protection level | IP54 | ||
| Cooling method | Forced air cooling | ||
| Noise control | ≤40dB | ||
