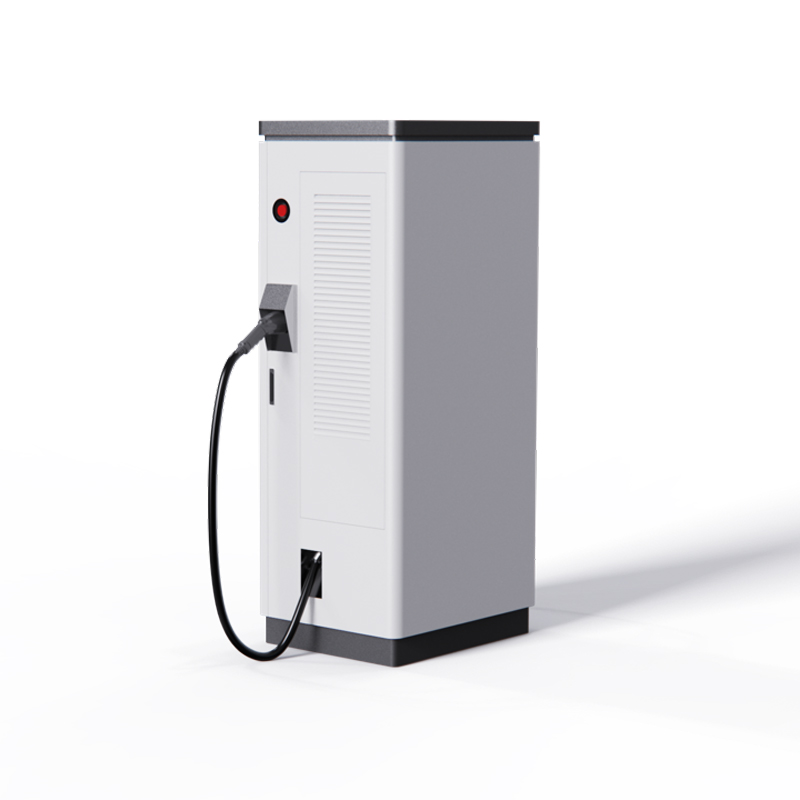

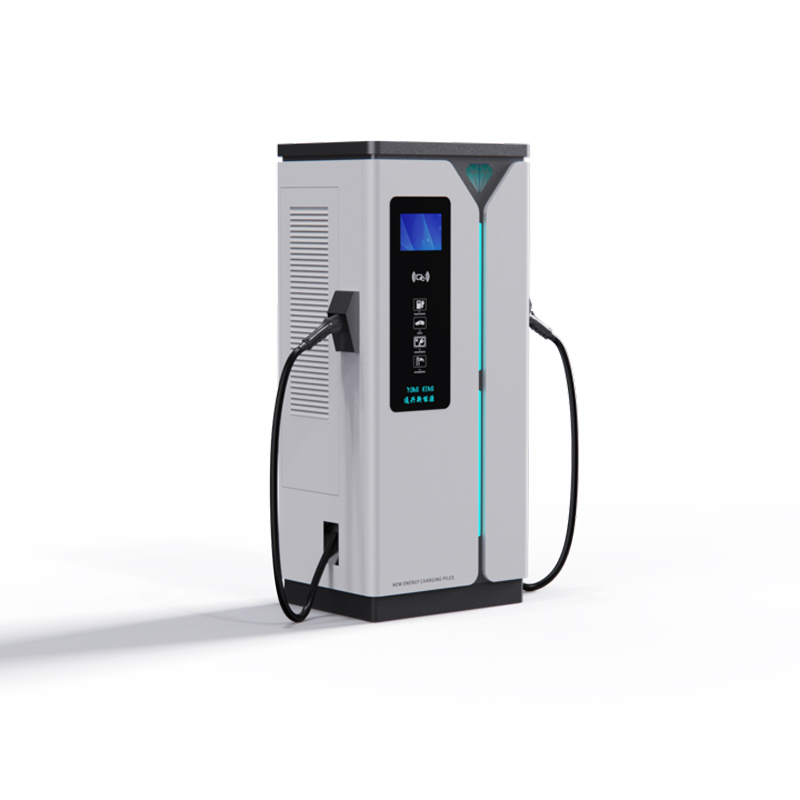

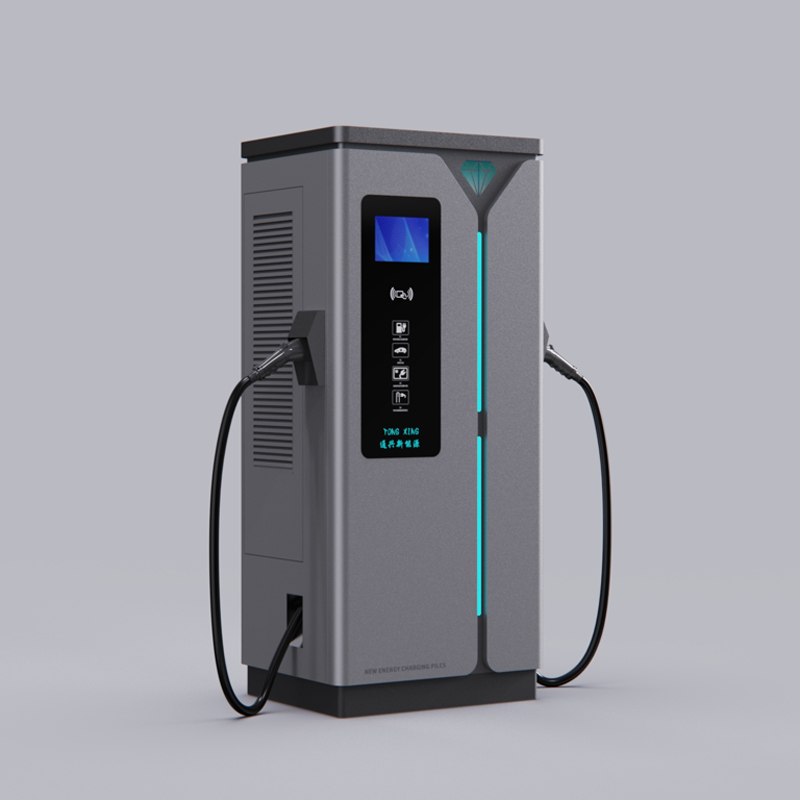

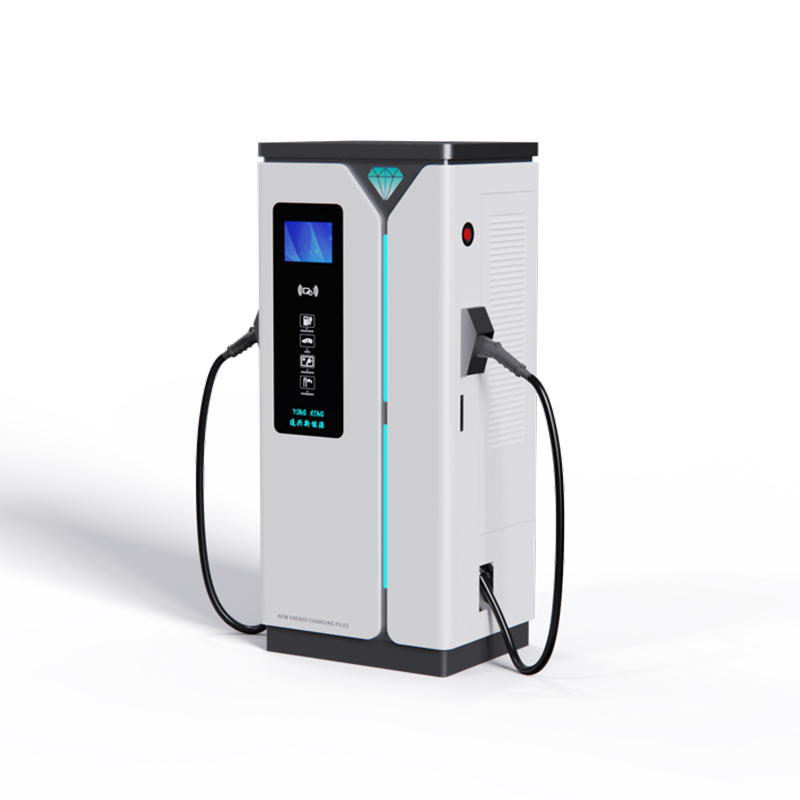

120KW GB/T DC EV Fast Charger Station for Electric Car Energy Storage CCS1 CCS2 DC EV Charging Stations 60KW-240KW Manufacturer

* 7KW-720kw Optional
* 1 Guns or 2 Guns or 3 Guns or 4 Guns  CCS1, CCS2, Chademo, GBT, AC Optional)
* Floor-stand
* 7inch LCD screen/LED light
* OCPP 1.6/2.0
* IP54/55
* 48 Months Warranty
* Time-saving - Fast charging
* Power saving - High conversion efficiency and low standby power consumption
* High Safety - Dual protection to both manual operation and vehicles

    Product parameters

    Rated power DC 60KW DC 80KW DC 120KW DC 160KW DC 200KW DC 240KW
    Product model TXDC380A60 TXDC380B80 TXDC380B120 TXDC380B160 TXDC380B240
    Electrical equipment Installation method Floor standing
    Overall dimensions 80 * 55 * 1300 (mm) wide, thick, and high 70 * 40 * 1900 (mm) wide, thick, and high 70 * 40 * 1900 (mm) wide, thick, and high 70 * 60 * 1900 (mm) wide, thick, and high 70 * 60 * 1900 (mm) wide, thick, and high 70 * 60 * 1900 (mm) wide, thick, and high
    Output mode Single circuit, national standard connecting line, 5M cable Two-way, national standard connecting line, 5M cable
    interface 7-inch LCD touch screen
    Wiring mode Down in and up out
    input voltage AC380V±20%
    Input frequency 45-65Hz
    output voltage 200-1000V
    Single gun output current 0-250A
    Input current 110 148 220
    Metering accuracy Level 0.5
    Electrical indicators Current limiting protection ≥110%
    Voltage stabilization accuracy ≤±0.5%
    Steady current accuracy ≤±1%
    Ripple coefficient ≤±0.5%
    efficiency ≥94.5%
    power factor ≥ 0.99 (above 50% load)
    functional design interface 7-inch LCD color touch screen, LED indicator
    Charging mode Automatic charging, fixed power, fixed amount, and fixed time
    Payment method Credit card payment,Swipe card payment, Scanning code payment
    Communication method OCPP 1.6/Ethernet/ 4G (optional)
    safety design Executive standards IEC 62196/IEC 61851/GB/T 20234/GB/T 18487
    Safety function Charging gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, low-temperature protection, insulation detection protection, polarity reversal protection, lightning protection, emergency stop protection, and leakage protection
    Environmental indicators working temperature ﹣25℃—﹢50℃
    Operating humidity 5% - 95% frost free
    Working altitude <2000 meters
    Protection level IP54
    Cooling method Forced air cooling
    noise control ≤60dB

    Application

    Tongxing New Energy is a specialist in EV charging station installations around China in multiple different scenarios.

    Our products possess the top-graded materials to withstand extreme conditions, namely being temperature-resistant, water-proof, and dust-proof, which comply with the IP55 and IP65 certification.

    We can install wall or floor-mounted EV Chargers, which are applied in both indoor and outdoor settings, such as garages at home or villa, carports, on-street parking and driveways.

    Those charging stations can interconnect with payment systems and back-office support through the OCPP platform for residential management and commercial use.

    Tongxing New Energy incorporates solar PV systems or energy storage systems into our products.  Meanwhile, all EV chargers are qualified with level II charging speed.  Therefore, people can efficiently charge their electric vehicles by using solar energy.
    • product description01
    • product description02

    Application

    With the sincere service and profesional manufacture towards our customers over 30+ years,our producrs have beenattractingnumerous customers from Europe, Austrilia, the Middle East and tothe South Asia.

    Tongxing EV Charger has been enjoying a good reputation across the world from the coldest area lreland to the hottest area South Africa.

    Therefore, Tongxing EV charger has been catering to the different customers'needs and updating our products in terms of functions, materials etc.

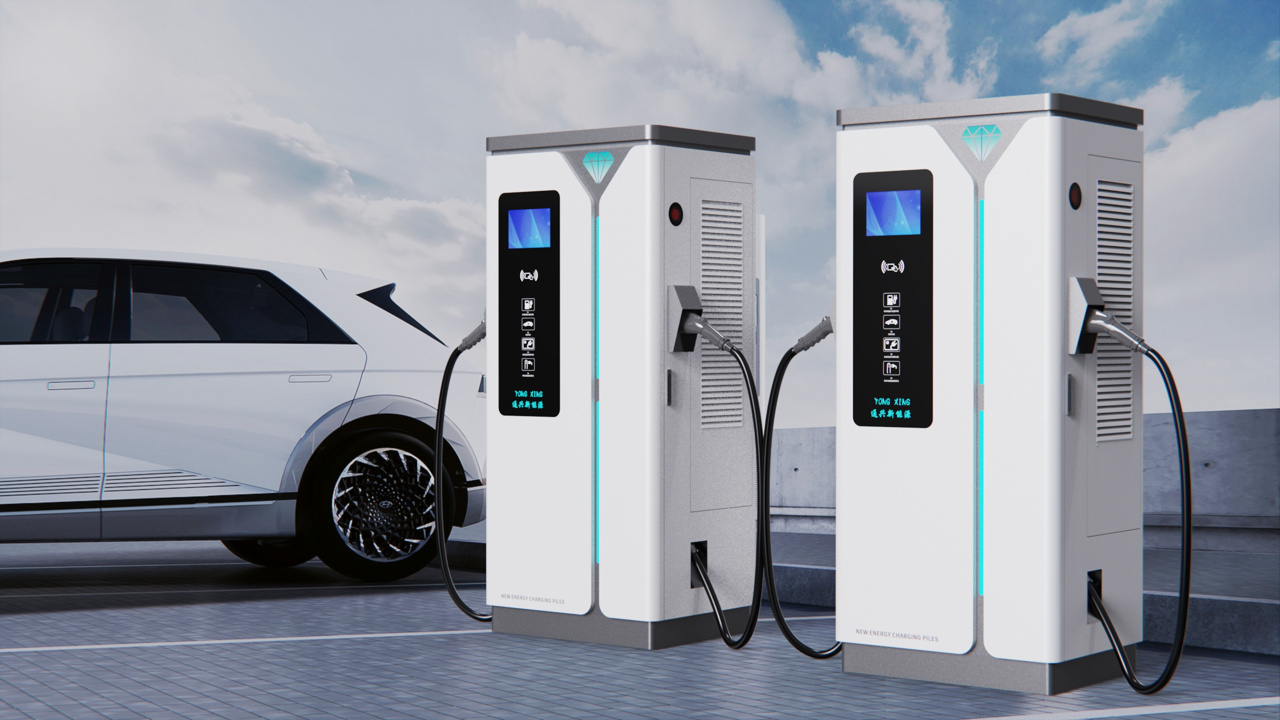

    product description03

    Application

    Our EV charger supplies power to any electrical vehicle. The wall-mounted and floor-mounted design as well as its IP54/55 dust and waterproof housing make the EV chargers suitable for outdoor or indoor spaces. The output of our AC EV charger ranges from 16amps to 32amps. And the output power of DC fast EV charging is up to 720kW.

    TONGXING is a long-running EV charger and PV products manufacturer with more than 30 years of experience. Our knowledge in manufacturing PV components ensures all of our EV chargers surpass your expectations in terms of service life and performance.

    The robust build of our EV charger lets you satisfy various business goals while driving your brand.

    Contact us for a free consultation

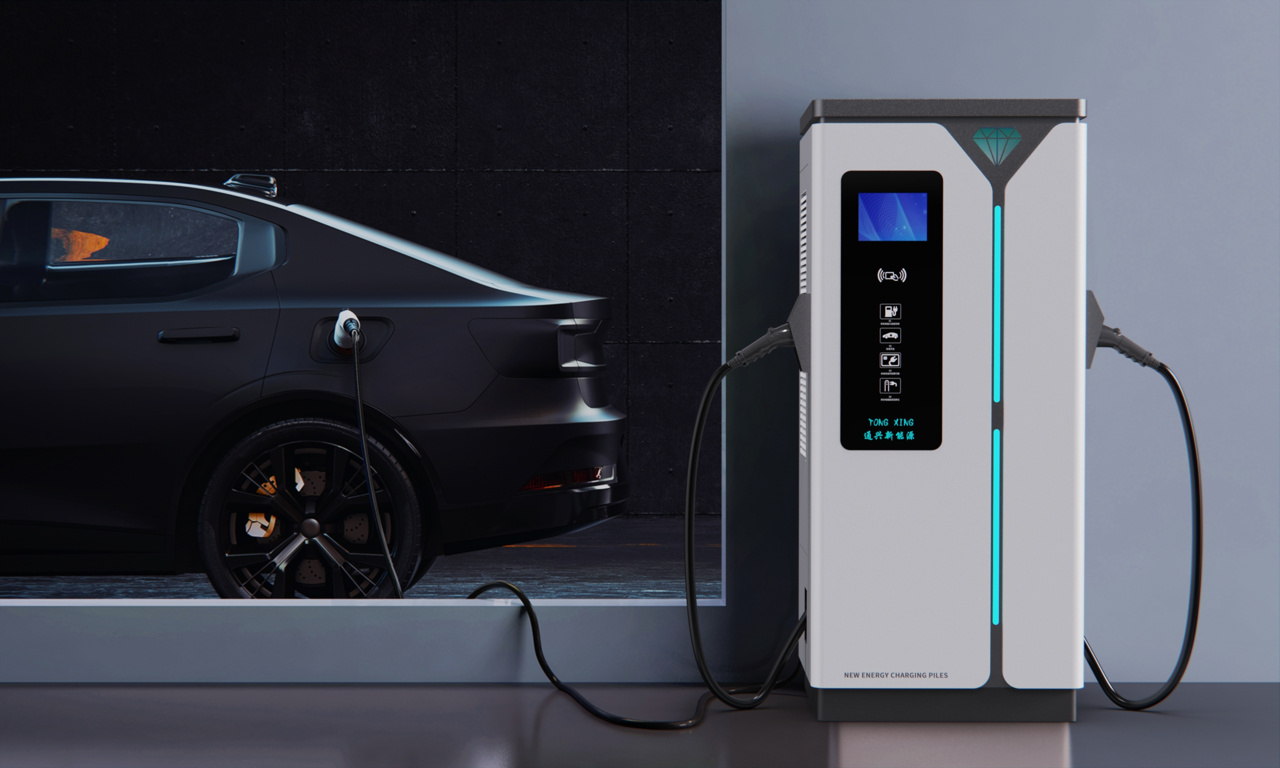

    product description04
